Repower - 2008

Photo Album

PreparationEngine ArrivalDesignHauloutEngine Swap
Final InstallFinishing Touches

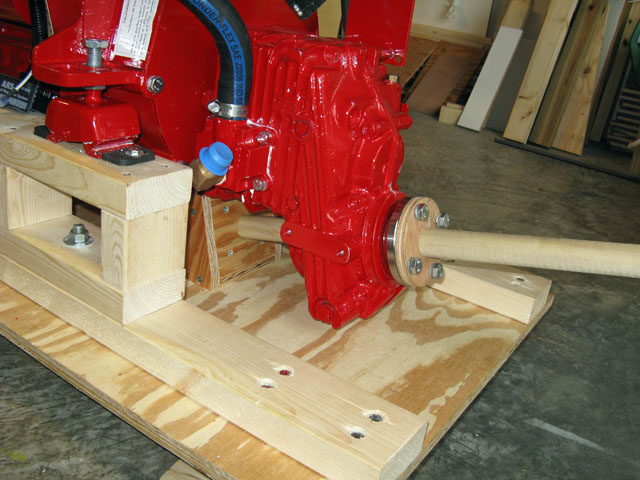

  • Virtual Shaft Alignment Virtual Shaft Alignment With shaft aligned to base, geometry of mountings and engine beds can be determined.

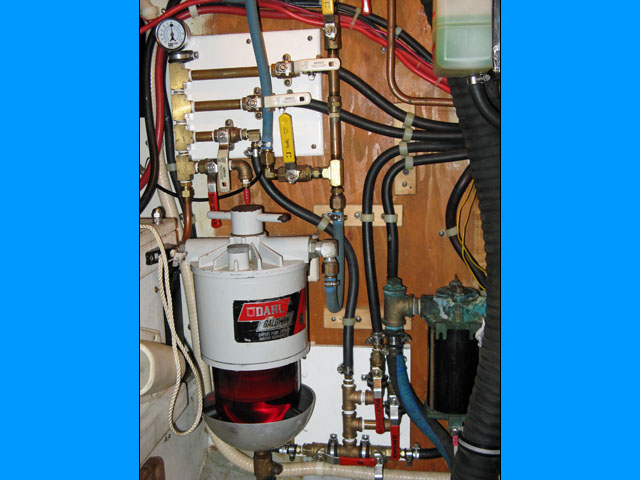

  • New Fuel Manifold New Fuel Manifold Fuel system was redesigned, providing isolation valves for engine and generator as well as a pass-through connection for polishing fuel.

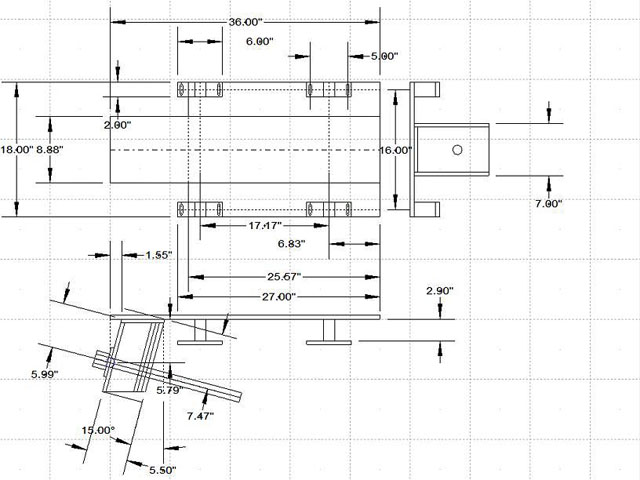

  • CAD Drawing of Engine Template. CAD Drawing of Engine Template. Created with the help of manufacter drawings of engine.

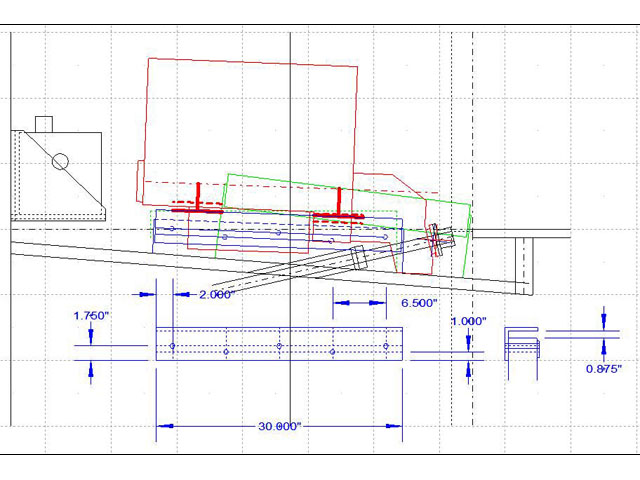

  • CAD Drawing of Engine Beds CAD Drawing of Engine Beds Green lines show position of the old rails, blue the new rails. Engine extent is red.

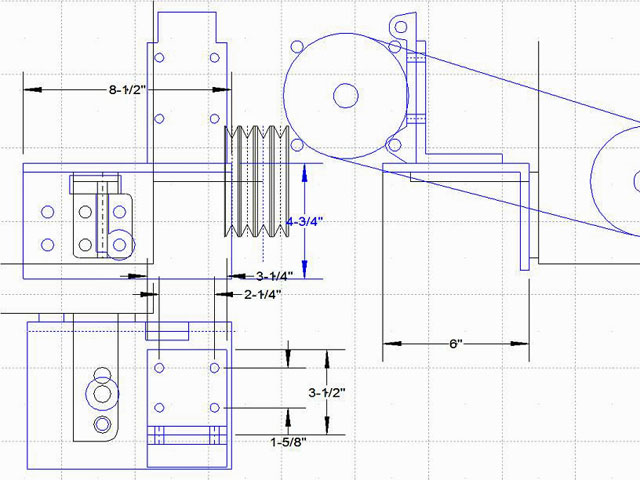

  • CAD Drawing of Compressor Bracket CAD Drawing of Compressor Bracket Bracket attaches to machined holes on engine and left front engine mounts. Fabricated from aluminum angle stock.

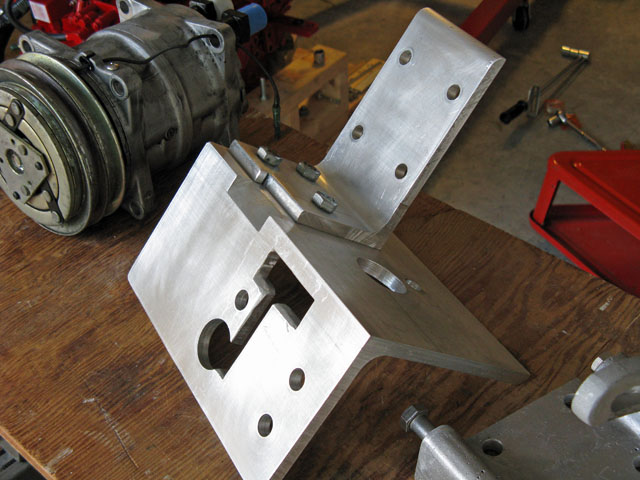

  • Fabricated Compressor Bracket Fabricated Compressor Bracket Cutout fits over engine mount.

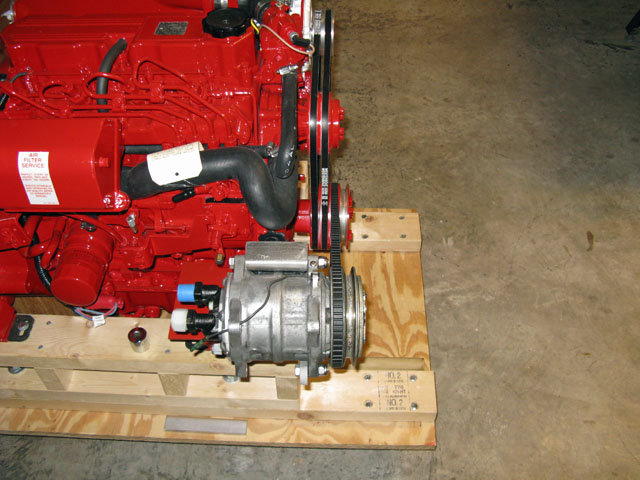

  • Mounted Compressor - Front View Mounted Compressor - Front View

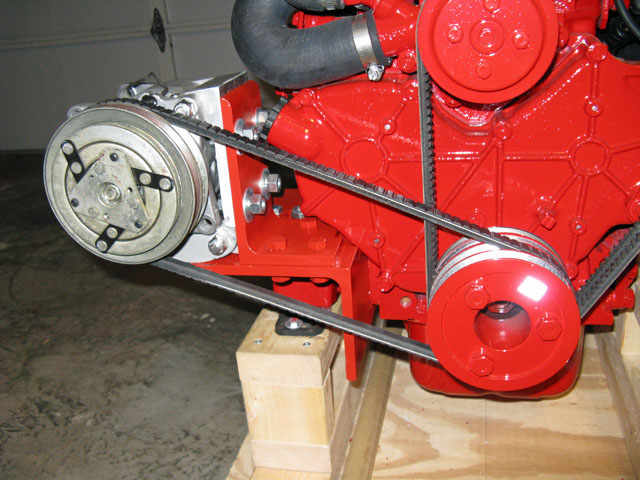

  • Compressor - Side View Compressor - Side View

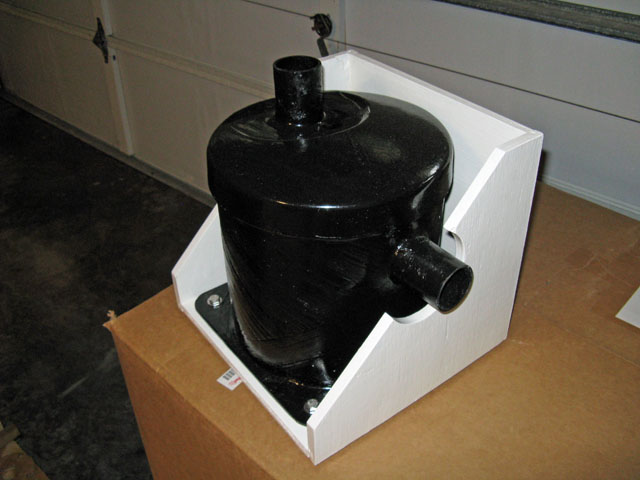

  • Muffler Mounting Muffler Mounting

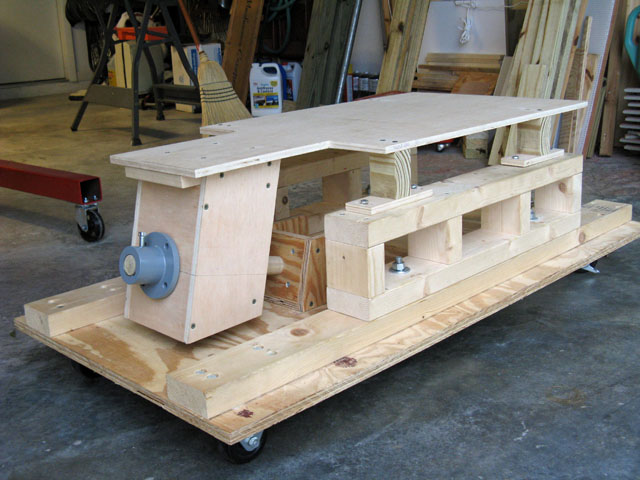

  • Engine Template Verification Engine Template Verification The geometry of the template, from shaft to virtual mounts matches the engine - used to verify beds before installing engine.
